Connecting Pulse Output Applications on the DT7816

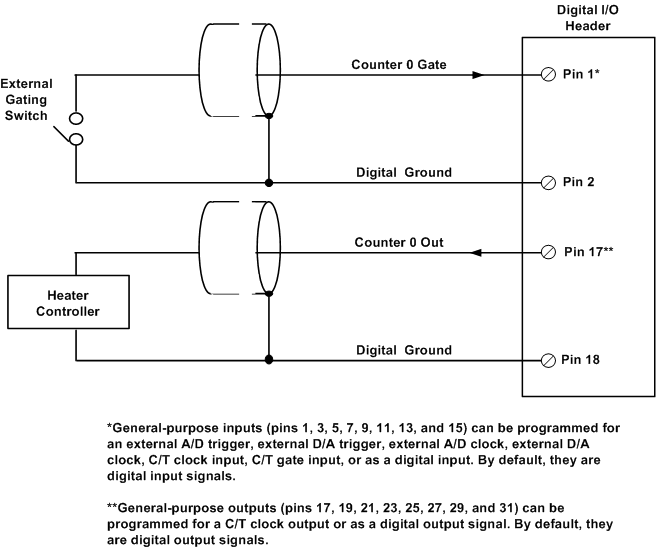

The following figure shows how to connect counter/timer signals to the DT7816 to perform a pulse output (rate generation or non-retriggerable one-shot) operation on counter/timer 0; in this example, an external gate is used.
