Setting Up the Digital Input Port

From the Input Stream page of the DT7816 web server, click Digital to set up the options for the digital input port.

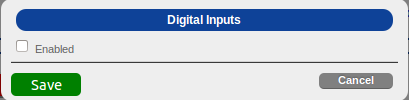

The following options appear:

To configure the digital input port, perform the following steps:

1. Select Enabled if you want to acquire data from the digital input port in the input stream. If this box is unchecked, data from the digital input port is not acquired in the input stream.

2. Click Save to save the configuration.

3. Ensure that you wire signals appropriately to the digital input lines.

Refer to the DT7816 User's Manual for more information on digital input operations.
