To make development easier, the optional DT7816 Accessory kit is available. This kit includes the following accessories, which can also be purchased separately, if desired:
STP781x screw terminal panel – This screw terminal panel provides three connectors that mate to the three headers on the DT7816 module, allowing you to access all the signals on the DT7816 module.

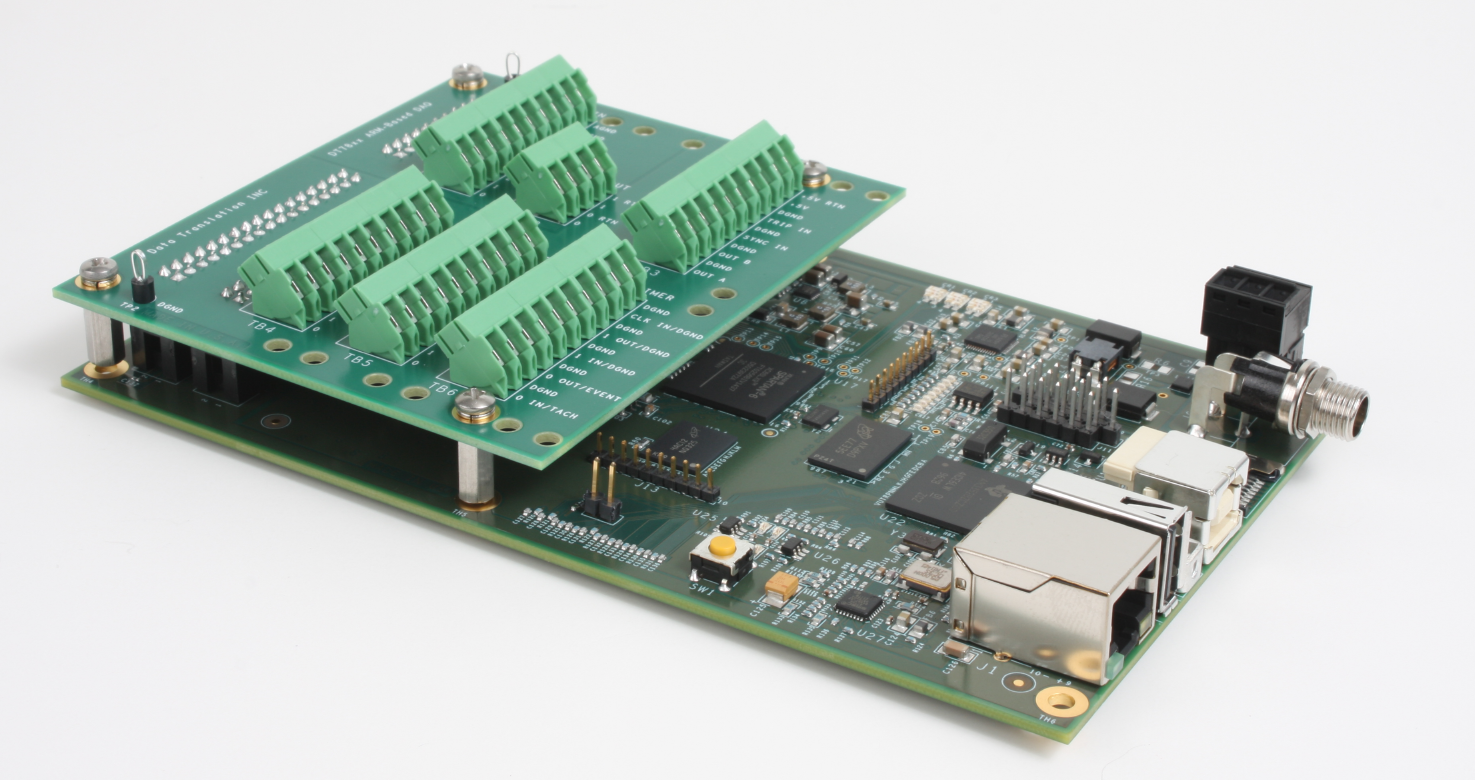

This figure shows the STP7816 screw terminal panel mounted on the DT7816.
EP405 USB
to Serial TTL Debug Cable – This 3Mbaud, 1.8 m cable connects
the USB port of the host computer to serial port 0 connector J10 on
the DT7816, allowing you to debug the DT7816 using a terminal interface.
EP372 Ethernet Cable – This 2 meter cable connects to the Ethernet connector on the DT7816 module and to the network.
EP365 USB Cable – This 1.83 meter cable connects to the USB connector on the DT7816 module and to your host computer.
