Digital Connector on the DT7837

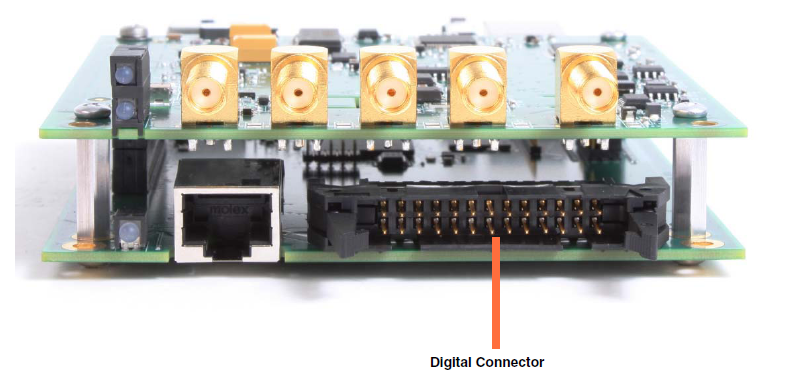

The DT7837 module provides a 26-pin Digital connector for attaching the tachometer input, digital I/O, external trigger, and counter/timer signals. To make wiring signals easier, you can attach the STP26 screw terminal panel to this connector.

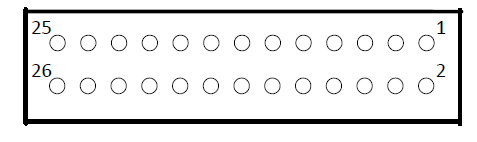

The layout of the Digital connector is shown below.




The following table lists the pin assignments of this connector.

                                                               Pin Assignments of the Digital Connector

Connector Pin Number

Signal Description

Connector Pin Number

Signal Description

1

General-Purpose Input 0a

14

General-Purpose Output 3b

2

General-Purpose Input 1a

15

General-Purpose Output 4b

3

General-Purpose Input 2a

16

General-Purpose Output 5b

4

General-Purpose Input 3a

17

General-Purpose Output 6b

5

General-Purpose Input 4a

18

General-Purpose Output 7b

6

General-Purpose Input 5a

19

Digital Ground

7

General-Purpose Input 6a

20

Digital Ground

8

General-Purpose Input 7a

21

Reserved

9

Digital Ground

22

Digital Ground

10

Digital Ground

23

Tachometer Input

11

General-Purpose Output 0b

24

Digital Ground

12

General-Purpose Output 1b

25

+5 V

13

General-Purpose Output 2b

26

Digital Ground

a. The input signals are +5 V tolerant and 22 kW pull-ups are provided. By default, they are configured as digital input signals.

b. The output signals are driven by LVTTL buffers and are capable of providing up to ±24 mA of drive current at standard LVTTL levels. By default, they are configured as digital output signals.



Using software, you can specify a general-purpose input signal as the signal source for the following destinations:

Using software, you can specify a general-purpose output signal as the signal source for one of these destinations:
